Starmont SMSX1/SMSX2 (Linux)
Network setup (Ethernet - Dynamic)
This outlines the procedure for connecting a Linux based Starmont media player to a typical Ethernet (dynamic) network. The media player uses drakxtools for ease of configuration.
Connect a mouse to the Starmont media player, using one of the available USB ports on the device.
|

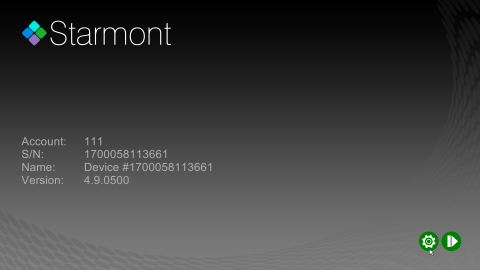

Power on the device, and when it boots to the start screen (as shown to the left), click on the "Settings" icon (gear icon) on the lower right hand side of the display. After doing this, it will take a couple of seconds for the first configuration dialog to appear.
|
|

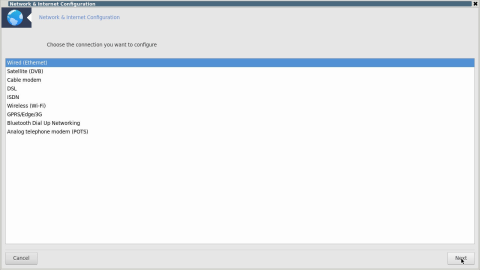

Select "Wired" from the list. Press the "Next" button.
|
|

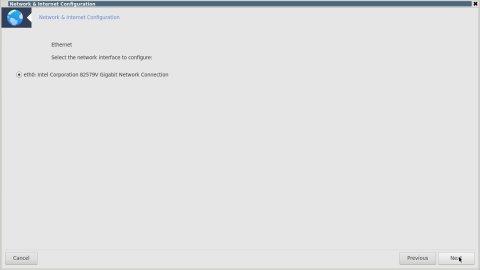

Select "eth0" from the list. Press the "Next" button.
|
|

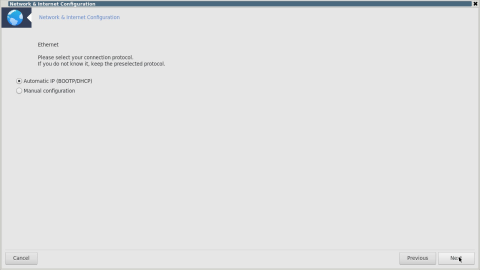

Select "Automatic IP" from the list. Press the "Next" button.
|
|

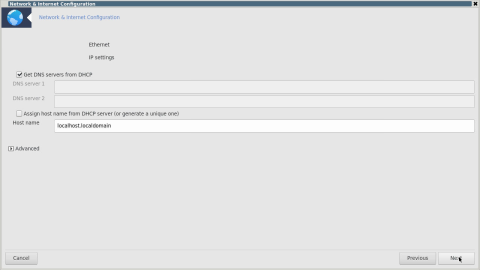

No changes should be necessary in this dialog. Press the "Next" button.
|
|

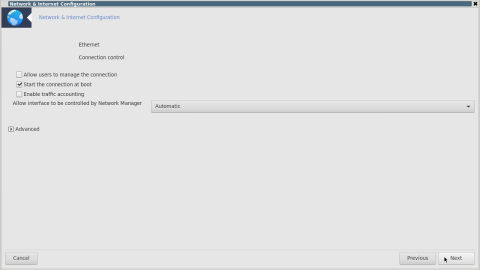

Make sure "Start the connection at boot" is checked. Press the "Next" button.
|
|

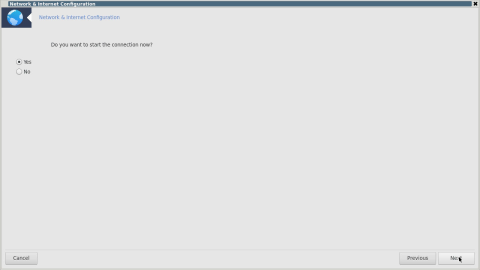

Select "Yes" from the list. Press the "Next" button.
|
|

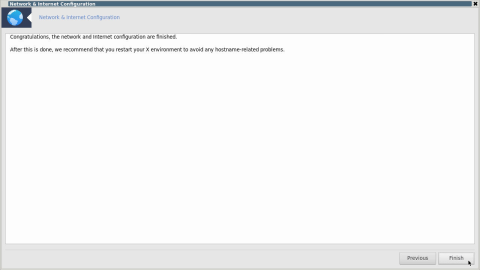

Click the "Finish" button. Your changes will be saved and the device will reboot.
|
